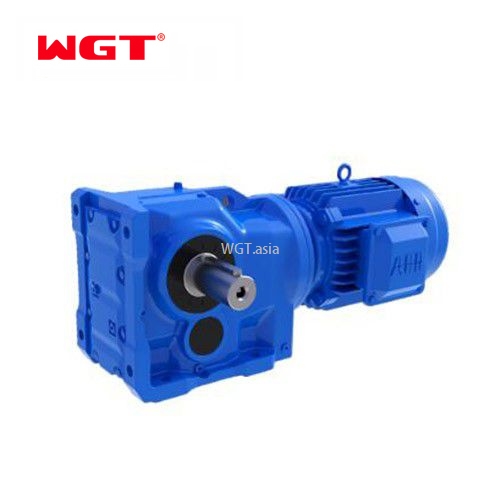

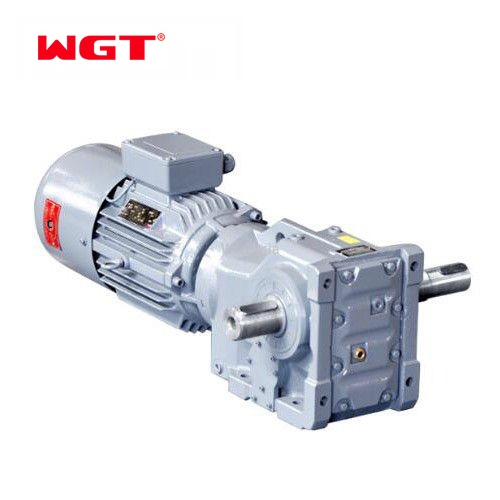

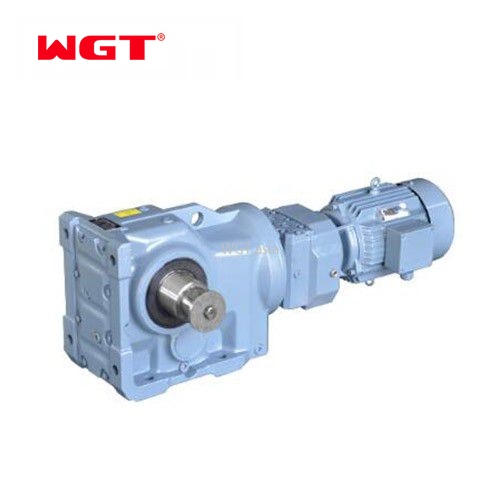

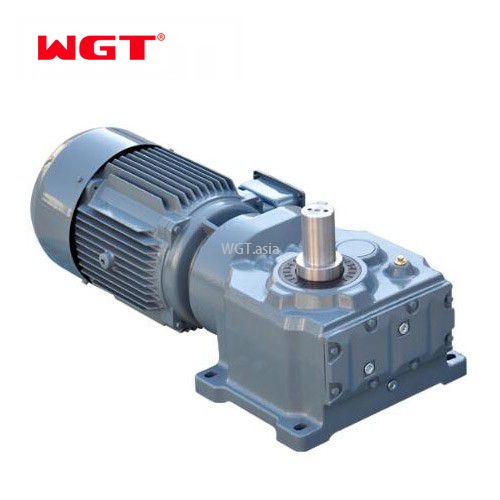

K187/KA187/KF187/KAF187 Helical gear hardened reducer

7 Views

Product Item:K187/KA187/KF187/KAF187

FOB Reference price：$7500
Minimum order quantity：10Piece
Customized logo：50Piece
Payment method：T/T
Supply capacity：30 day（800Piece）
Delivery time：30 day (1 - 100 Piece)
Packing：Standard export plywood case
Port：NINGBO/SHANGHAI PORT
Warranty：one year
Brand Name：WGT
Place of Origin：Zhejiang, China

Get A Free Quote

Category :

K series helical bevel gear units

Description

K187/KA187/KF187/KAF187 series helical gear reducer has the characteristics of strong versatility, good combination and strong carrying capacity. It has the advantages of easy transmission ratio, high efficiency, small vibration and large radial load of shaft. This series not only can be combined with various reducers and transmissions to meet the requirements, but also facilitates the localization of related transmission equipment.

Product Description
Features ◆High modular design ◆High loading support, stable transmitting and low noise level. ◆Excellent sealing, wide range of industry application. ◆High efficiency and save power. ◆Save cost and low maintenance.	Main applied for ◆Harbor and shipping ◆Hoist and transport ◆Electric power ◆Coal mining ◆Cement and construction ◆Paper and light industry ◆Chemical industry and environmental protection

Housing material	Cast iron/Ductile iron
Housing hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58*~62。
Gear core hardness	HRC33~40
Input / Output shaft material	42CrMo alloy steel
Input / Output shaft hardness	HRC25~30
Machining precision of gears	accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell 0mala220-460
Heat treatment	tempering, cementiting, quenching, etC.
Effciency	94%~96% (depends on the transmission stage)
Noise (MAX)	60~ 68dB
Temp. rise (MAX)	40°C
Temp. rise (OiI)(MAX)	50°C
Vibration	≤20μm
Backlash	≤20Arcmin
Brand of bearings	China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested,SKF, FAG, INA, NSK.
Brand of oil seal	NAK -- Taiwan or other brands requested

K series reducer has the following models:
K37 K47 K57 K67 K77 K87 K97 K107 K127 K157 K167 K187KA37 KA47 KA57 KA67 KA77 KA87 KA97 KA107 KA127 KA157 KA167 KA187KF37 KF47 KF57 KF67 KF77 KF87 KF97 KF107 KF127 KF157 KF167 KF187KAF37 KAF47 KAF57 KAF67 KAF77 KAF87 KAF97 KAF107 KAF127 KAF157 KAF167 KAF187KAZ37 KAZ47 KAZ57 KAZ67 KAZ77 KAZ87 KAZ97 KAZ107 KAZ127 KAZ157 KAZ167 KAZ187KAT37 KAT47 KAT57 KAT67 KAT77 KAT87 KAT97 KAT107 KAT127 KAT157 KAT167 KAT187KAB37 KAB47 KAB57 KAB67 KAB77 KAB87 KAB97 KAB107 KAB127 KAB157 KAB167 KAB187

SIZE	Shaft Dia (mm)Solid Hallow		Center Height	Output Flange Dia.(mm)	Power(kw)	Ratio	PermissibleTorque(N.m)	Weight(KGS)
37	φ25k6	φ30h7	100	φ110/160	0.18-3.0	5.36-106.38	200	11
47	φ30k6	φ35h7	112	φ120/200	0.18-3.0	5.81-131.87	400	20
57	φ35k6	φ40h7	132	φ155/250	0.18-5.5	6.57-145.14	600	27
67	φ40k6	φ40h7	140	φ155/250	0.18-5.5	7.14-144.79	820	33
77	φ50k6	φ170	180	φ170/300	0.37-11.0	7.24-292.18	1550	57
87	φ60m6	φ60h7	212	φ215/350	0.75-22.0	7.19-197.18	2700	85
97	φ70m6	φ70h7	265	φ260/450	1.1-30.0	8.95-176.05	4300	130
107	φ90m6	φ90h7	315	φ304/450	3.0-45.0	8.74-141.46	8000	250
127	φ110m6	φ100h7	375	φ350/550	7.5-90.0	8.68-146.07	13000	380
157	φ120m6	φ120h7	450	φ400/660	11.0-160.0	12.65-150.41	18000	610
167	φ160m6	φ140h7	500	φ800	11.0-200.0	17.28-163.91	32000	1015
187	φ190m6	φ160h7	600	φ800	18.5-200.0	17.27-180.78	50000	1700
