Product Item:SA87/SAF87/SAZ87 FOB Reference price：$603 Minimum order quantity：10Piece Customized logo：50Piece Payment method：T/T Supply capacity：30 day（800Piece） Delivery time：30 day (1 - 100 Piece) Packing：Standard export plywood case Port：NINGBO/SHANGHAI PORT Warranty：one year Brand Name：WGT Place of Origin：Zhejiang, China

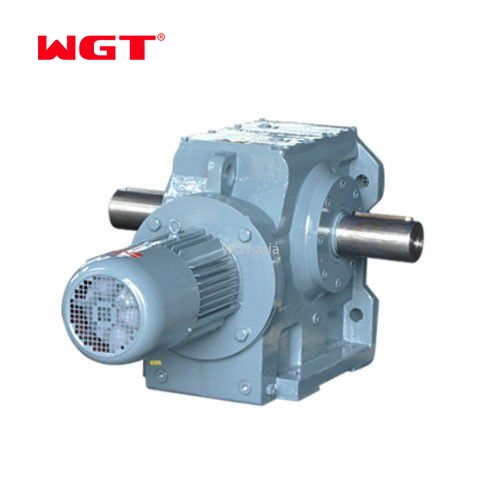

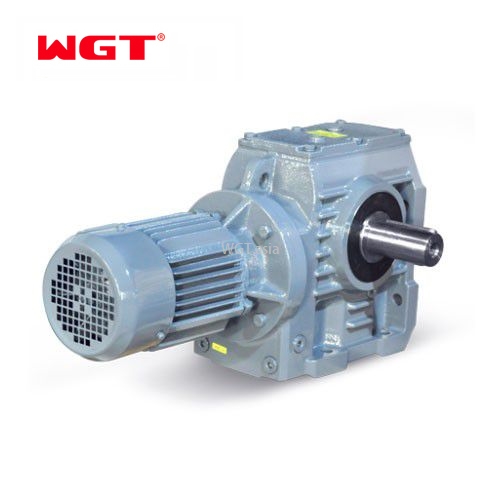

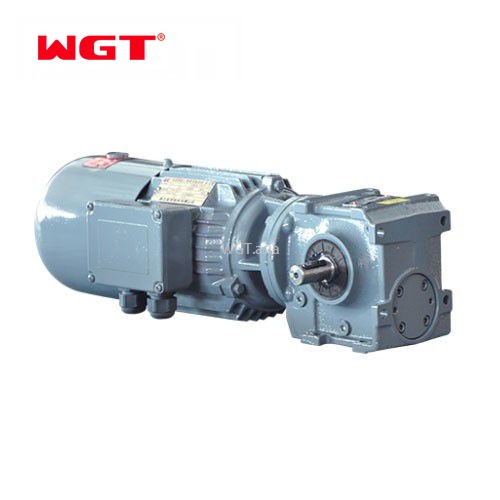

SA87/SAF87/SAZ87/SAT87/Helical gear worm gear reducer (without motor) series worm gear reducer has the usual characteristics, the machine also uses helical gear-worm gear form, so that The structure is more rationalized, which not only changes the transmission efficiency and carrying capacity higher than that of the single-stage worm gear transmission, but also reduces the space footprint in the structural layout, and at the same time, can obtain a larger transmission ratio under similar volume conditions. It is more conducive to the configuration of the equipment. The machine can be combined with various reduction and transmission to meet different usage requirements.
| Product Description |
|---|
| Features ●High modular design, biomimetic surface with owned intellectual property right. ◆Adopt German worm hob to process the worm wheel. ◆With the special gear geometry, it gets high torque, efficiency and long life circle. ◆It can achieve the direct combination for two sets of gearbox. ◆Mounting mode: foot mounted, fiange mounted, torque arm mounted. ◆Output shaft: solid shaft, hollow shaf. | Main applied for ◆Chemical industry and environmental protection ◆Metal processing ◆Building and construction ◆Agriculture and food ◆Textile and leather ◆Forest and paper ◆Car washing machinery |
| Housing material | Cast iron/Ductile iron |
| Housing hardness | HBS190-240 |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58*~62。 |
| Gear core hardness | HRC33~40 |
| Input / Output shaft material | 42CrMo alloy steel |
| Input / Output shaft hardness | HRC25~30 |
| Machining precision of gears | accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell 0mala220-460 |
| Heat treatment | tempering, cementiting, quenching, etC. |
| Effciency | 94%~96% (depends on the transmission stage) |
| Noise (MAX) | 60~ 68dB |
| Temp. rise (MAX) | 40°C |
| Temp. rise (OiI)(MAX) | 50°C |
| Vibration | ≤20μm |
| Backlash | ≤20Arcmin |
| Brand of bearings | China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested,SKF, FAG, INA, NSK. |
| Brand of oil seal | NAK -- Taiwan or other brands requested |
S series reducer has the following models:
S37 S47 S57 S67 S77 S87 S97SA37 SA47 SA57 SA67 SA77 SA87 SA97SF37 SF47 SF57 SF67 SF77 SF87 SF97SAF37 SAF47 SAF57 SAF67 SAF77 SAF87 SAF97SAT37 SAT47 SAT57 SAT67 SAT77 SAT87 SAT97SAZ37 SAZ47 SAZ57 SAZ67 SAZ77 SAZ87 SAZ97
| SIZE | Shaft Dia (mm)Solid Hallow | Center Height | Output Flange Dia.(mm) | Power(kw) | Ratio | PermissibleTorque(N.m) | Weight(KGS) | |
| 37 | φ25k6 | φ30h7 | 100 | φ110/160 | 0.18-3.0 | 5.36-106.38 | 200 | 11 |
| 47 | φ30k6 | φ35h7 | 112 | φ120/200 | 0.18-3.0 | 5.81-131.87 | 400 | 20 |
| 57 | φ35k6 | φ40h7 | 132 | φ155/250 | 0.18-5.5 | 6.57-145.14 | 600 | 27 |
| 67 | φ40k6 | φ40h7 | 140 | φ155/250 | 0.18-5.5 | 7.14-144.79 | 820 | 33 |
| 77 | φ50k6 | φ170 | 180 | φ170/300 | 0.37-11.0 | 7.24-292.18 | 1550 | 57 |
| 87 | φ60m6 | φ60h7 | 212 | φ215/350 | 0.75-22.0 | 7.19-197.18 | 2700 | 85 |
| 97 | φ70m6 | φ70h7 | 265 | φ260/450 | 1.1-30.0 | 8.95-176.05 | 4300 | 130 |
| 107 | φ90m6 | φ90h7 | 315 | φ304/450 | 3.0-45.0 | 8.74-141.46 | 8000 | 250 |
| 127 | φ110m6 | φ100h7 | 375 | φ350/550 | 7.5-90.0 | 8.68-146.07 | 13000 | 380 |
| 157 | φ120m6 | φ120h7 | 450 | φ400/660 | 11.0-160.0 | 12.65-150.41 | 18000 | 610 |
| 167 | φ160m6 | φ140h7 | 500 | φ800 | 11.0-200.0 | 17.28-163.91 | 32000 | 1015 |
| 187 | φ190m6 | φ160h7 | 600 | φ800 | 18.5-200.0 | 17.27-180.78 | 50000 | 1700 |
