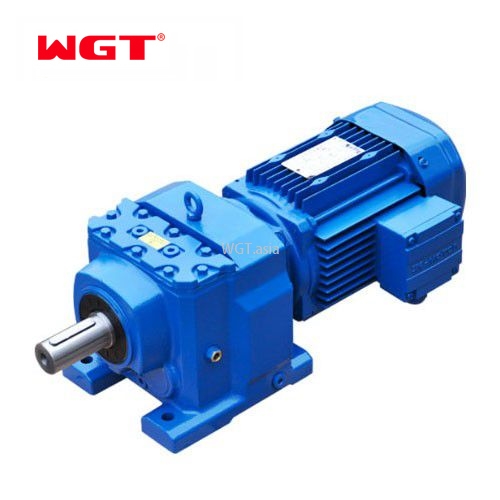

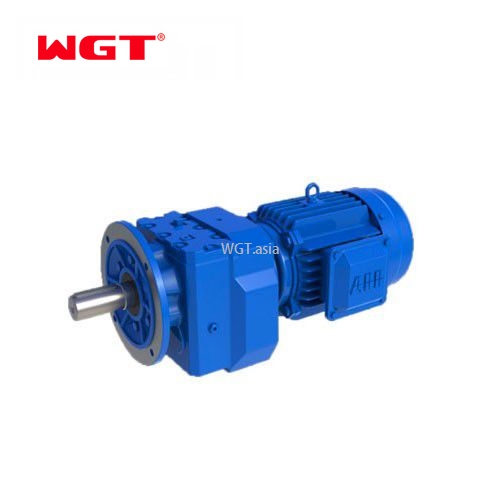

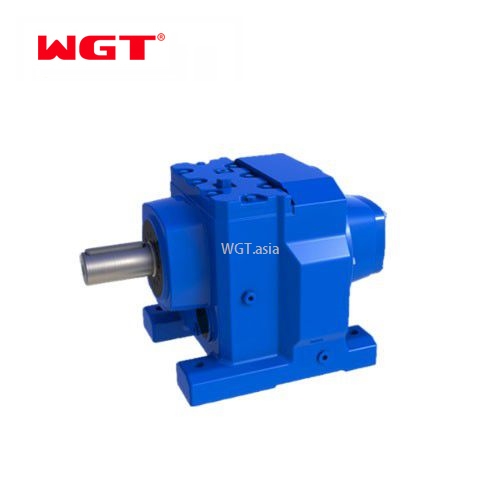

RX107/RXF107/RXS107 Helical gear hardened reducer (without motor）

10 Views

Product Item:RX107/RXF107/RXS107

FOB Reference price：$402
Minimum order quantity：10Piece
Customized logo：50Piece
Payment method：T/T
Supply capacity：30 day（800Piece）
Delivery time：30 day (1 - 100 Piece)
Packing：Standard export plywood case
Port：NINGBO/SHANGHAI PORT
Warranty：one year
Brand Name：WGT
Place of Origin：Zhejiang, China

Get A Free Quote

Category :

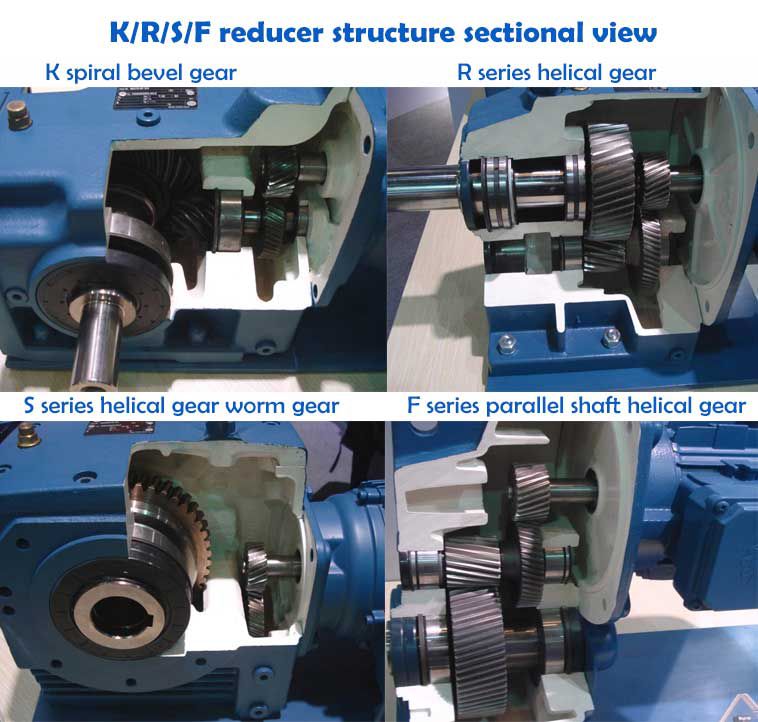

R series helical gear units

Description

RX107/RXF107/RXS107 series helical gear reducer has the characteristics of strong versatility, good combination and strong carrying capacity. It has the advantages of easy transmission ratio, high efficiency, small vibration and large radial load of shaft. This series not only can be combined with various reducers and transmissions to meet the requirements, but also facilitates the localization of related transmission equipment.

product description

eature

High modular design.

The integral casting shell has compact size, high load carrying capacity, stable transmission and low noise.

Good anti-leakage performance, good sealing, can be widely used in industrial production.

Energy efficient.

Cost savings and low maintenance costs.

Main application industries
Food light industry, electrical machinery, construction machinery, metallurgical machinery,

Cement machinery, environmental protection machinery, electronic appliances, road construction machinery,

Water conservancy machinery, chemical machinery, mining machinery, transportation machinery,

Building materials machinery, rubber machinery, petroleum machinery and other industries

Technical data

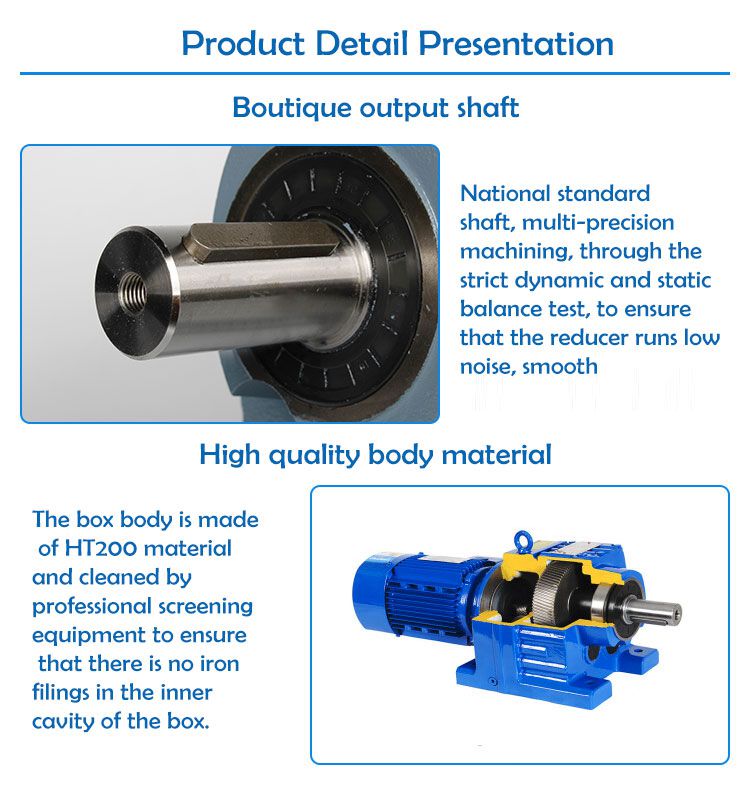

Shell material	Cast iron / ductile iron
Shell hardness	HBS190-240

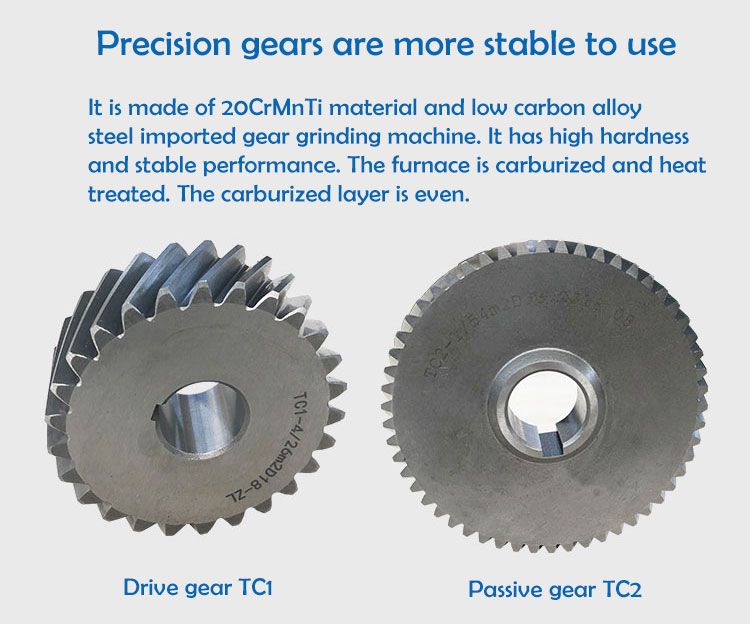

Gear material	20CrMnTi alloy steel
Gear surface hardness	HRC58 ° ~ 62 °
Gear core hardness	HRC33 ~ 40

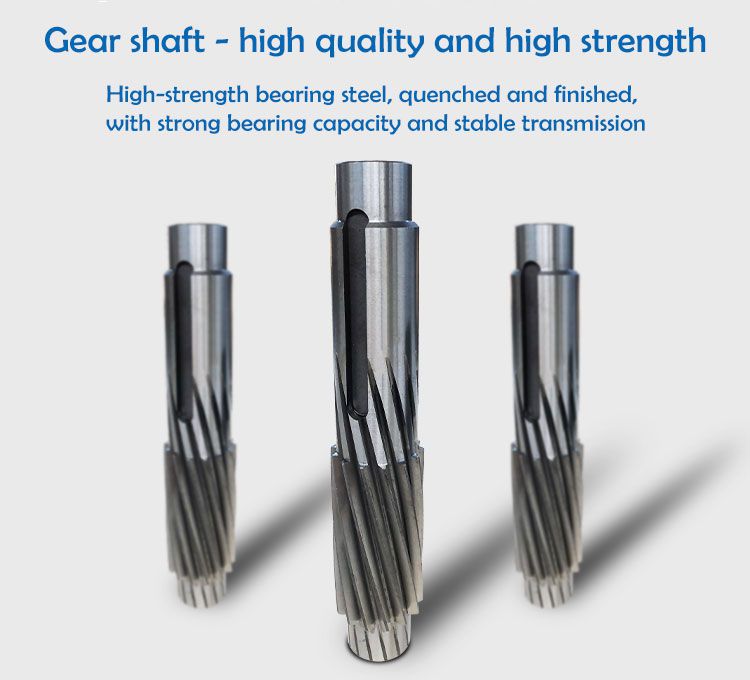

Input / output shaft material	42CrMo alloy steel
Input / output shaft hardness	HRC25 ~ 30
Gear machining accuracy	Precision grinding, level 6 ~ 5
lubricating oil	GB L-CKC220-460, Shell withstand voltage 220-460
Heat treatment	Tempering, carburizing, quenching, etc.
effectiveness	94% ~ 96% (depending on the transmission stage)

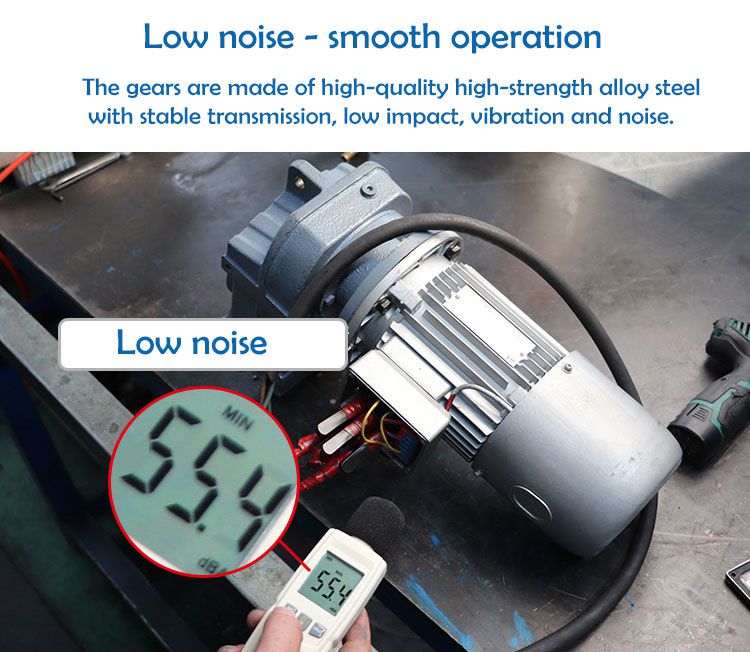

Noise (maximum)	60 ~ 68dB
Temperature rise (MAX)	40 ° C
Temperature rise (oil) (maximum)	50 ° C
vibration	≤20µm
Recoil	≤20Arcmin
Bearing brand	Chinese brand bearings, HRB / LYC / ZWZ / C & U. Or other brands requested, SKF, FAG, INA, NSK.
Oil seal brand	NAK --- Taiwan or other brand requirements

model size	Shaft diameter solid (mm)	Center height (mm)	Output flange diameter (mm)	Power (kw)	Speed ratio	Allowable torque (N.m)	Weight (KGS)
R17	φ20k6	75	φ120 / 140	0.18-0.75	3.83-74.84	85	4
R27	φ25k6	90	φ120 / 140	0.18-3.00	3.37-135.09	130	5.5
R37	φ25k6	90	φ160 / 200	0.18-3.00	3.33-134.82	200	8.5
R47	φ30k6	115	φ160 / 200	0.18-5.50	3.83-176.88	300	10
R57	φ35k6	115	φ200 / 250	0.18-7.50	4.39-186.89	450	18
R67	φ35k6	130	φ200 / 250	0.18-7.50	4.29-199.81	600	25
R77	φ40k6	140	φ250 / 300	0.18-11.00	5.21-195.24	820	36
R87	φ50k6	180	φ300 / 350	0.55-22.00	5.36-246.54	1550	63
R97	φ60m6	225	φ350 / 450	0.55-30.00	4.49-289.74	3000	101
R107	φ70m6	250	φ350 / 450	2.20-45.00	5.06-249.16	4300	153
R137	φ90m6	315	φ450 / 550	5.50-55.00	5.15-222.60	8000	220
R147	φ110m6	335	φ450 / 550	11.00-90.00	5.0-16.31	13000	400
R167	φ120m6	425	φ550 / 660	11.00-160.00	10.24-229.71	18000	700

R series reducer has the following models:
R series reducer has the following models:
R series reducer has the following models:R17 R27 R37 R47 R57 R67 R77 R87 R97 R107 R137 R147 R167RS17 RS27 RS37 RS47 RS57 RS67 RS77 RS87 RS97 RS107 RS137 RS147 RS167RFS17 RFS27 RFS37 RFS47 RFS57 RFS67 RFS77 RFS87 RFS97 RFS107 RFS137 RFS147 RFS167RF17 RF27 RF37 RF47 RF57 RF67 RF77 RF87 RF97 RF107 RF137 RF147 RF167RX37 RX57 RX67 RX77 RX87 RX97 RX107 RX127 RX157RXF37 RXF57 RXF67 RXF77 RXF87 RXF97 RXF107 RXF127 RXF157RXS37 RXS57 RXS67 RXS77 RXS87 RXS97 RXS107 RXS127 RXS157RXFS37 RXFS57 RXFS67 RXFS77 RXFS87 RXFS97 RXFS107 RXFS127 RXFS157
